SQLite SQL

本章来源:

• SQLite: SQLite SQL dialect

• SpatiaLite: SpatiaLite 4.3.0 SQL functions reference list

简介

GDAL 1.10 版本后,可以使用 Sqlite 语法代替 ogrsql 语法.大部分语法支持都需要Spatialite库. 执行方式同样调用 GDALDataset::ExecuteSQL() ,但是需要指定 pszDialect 参数为 “SQLITE”.

SELECT statement

简单 select 语句如下:

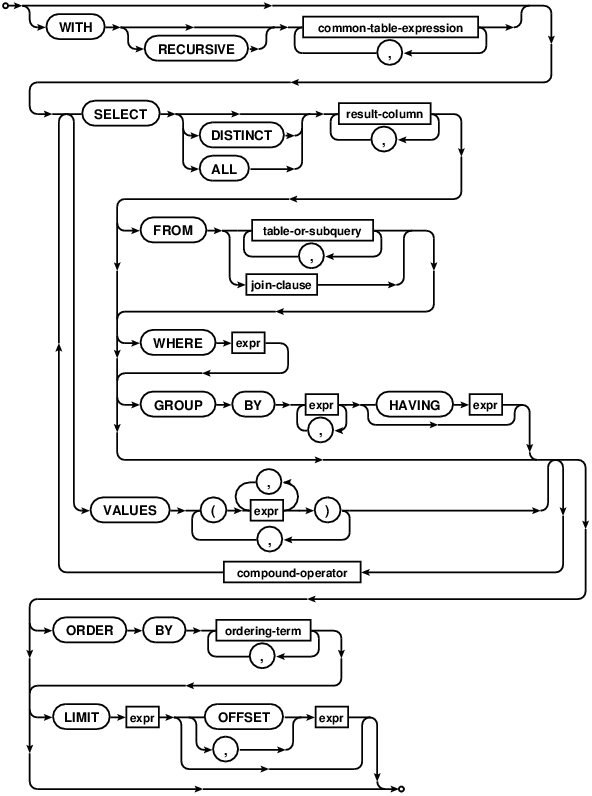

select 语法图如下:

join 语法如下:

Spatialite SQL

可以参考网站 SpatiaLite 4.3.0 SQL functions reference list 上的说明,下面列出来几个常用的,需要GEOS库支持

SQL functions that implement spatial operators

Function	Syntax	Summary
Intersection	Intersection( geom1 Geometry , geom2 Geometry ) :Geometry	两物求交
	ST_Intersection( geom1 Geometry , geom2 Geometry ) :Geometry
Difference	Difference( geom1 Geometry , geom2 Geometry ) :Geometry	两物求差
	ST_Difference( geom1 Geometry , geom2 Geometry ) :Geometry
GUnion	GUnion( geom1 Geometry , geom2 Geometry ) : Geometry	两物求并
	ST_Union( geom1 Geometry , geom2 Geometry ) : Geometry
GUnion	GUnion( geom1 Geometry ) : Geometry	整体求并
	ST_Union( geom1 Geometry ) : Geometry
Collect	Collect( geom1 Geometry , geom2 Geometry ) : Geometry	合并两者
	ST_Collect( geom1 Geometry , geom2 Geometry ):Geometry
Collect	Collect( geom Geometry ) : Geometry	合并集合
	ST_Collect( geom Geometry ) : Geometry

Function	Syntax	Summary
SymDifference	SymDifference( geom1 Geometry , geom2 Geometry ):Geometry	两物 逻辑或
	ST_SymDifference(geom1 Geometry ,geom2 Geometry ):Geometry
Buffer	Buffer( geom Geometry , dist Double precision[, quadrantsegments int] ):Geometry	缓冲区
	ST_Buffer( geom Geometry , dist Double precision[, quadrantsegments int] ):Geometry
Hausdorff Distance	HausdorffDistance( geom1 Geometry , geom2 Geometry ) : Double precision	豪斯多夫距离
	ST_HausdorffDistance( geom1 Geometry, geom2 Geometry) :Double precision
OffestCurve	OffsetCurve( geom Curve , radius Double precision ) :Curve	偏移曲线 正左负右
	ST_OffsetCurve( geom Curve , radius Double precision): Curve
Snap	Snap( geom1 Geometry , geom2 Geometry , tolerance Double precision ) : Geometry	咬合1到2
	ST_Snap( geom1 Geometry , geom2 Geometry , tolerance Double precision ) : Geometry

Function	Syntax	Summary
Dissolve Segments	DissolveSegments( geom Geometry ) : Geometry	溶合线段 点不会动 环被拆分
	ST_DissolveSegments( geom Geometry ) : Geometry
Delaunay Triangulation	DelaunayTriangulation( geom Geometry [ , edges_only Boolean [ , tolerance Double precision ]]) : Geometry	德拉尼三角网
	ST_DelaunayTriangulation( geom Geometry [, edges_only Boolean [ , tolerance Double precision ] ]): Geometry
VoronojDiagram	VoronojDiagram( geom Geometry [, edges_only Boolean [ , frame_extra_size Double precision [ , tolerance Double precision ] ] ] ) : Geometry	Voronoj图
	ST_VoronojDiagram( geom Geometry[, edges_only Boolean [ , frame_extra_size Double precision [ , tolerance Double precision ] ] ] ) : Geometry
ConvexHull	ConvexHull( geom Geometry ) : Geometry	凸包
	ST_ConvexHull( geom Geometry ) : Geometry
ConcaveHull	ConcaveHull( geom Geometry [, factor Double precision [ , allow_holes Boolean [, tolerance Double precision ] ] ] ) : Geometry	凹包
	ST_ConcaveHull( geom Geometry [ , factor Double precision [, allow_holes Boolean [ , tolerance Double precision ] ] ] ) : Geometry
